Conductor

Solid or standard, annealed copper to class 1 or 2 to BS 6360 or IEC 60228. In addition, tinned copper is used if required.

Mica / glass backed Tape

Stand temperature up to 900 C at 1.1 KV for 3 hours. It is wrapped with one layer or 2 layers as required in contact with the conductor

Insulation

Low smoke, zero halogen, cross linked polyethylene (XLPE), and colored

PET Tape

Tape wrapping after laying up of cores for multi core cables (optional)

Drain / Earth Wire

Same section as the conductor, solid, it is run along the lay up cores.

Screening

Aluminum/PET Tape helically wrapped with 100% coverage or with 20-25% overlap. Drain wire is in contact with the Alum. Layer.

Bedding

for Armoured cables, extruded with LSZH – XLPE.

Armouring

Aluminum wires for single core cables and galvanized steel wires for multi-core cables.

Sheath

Cable is sheathed (Jacketed) LSZH Compound to B57655 section 6-1 or LTS3

Color

Red or as required

Rated Voltage

300/500 Volts

CU/Mica Tape/XLLSHF Single Core

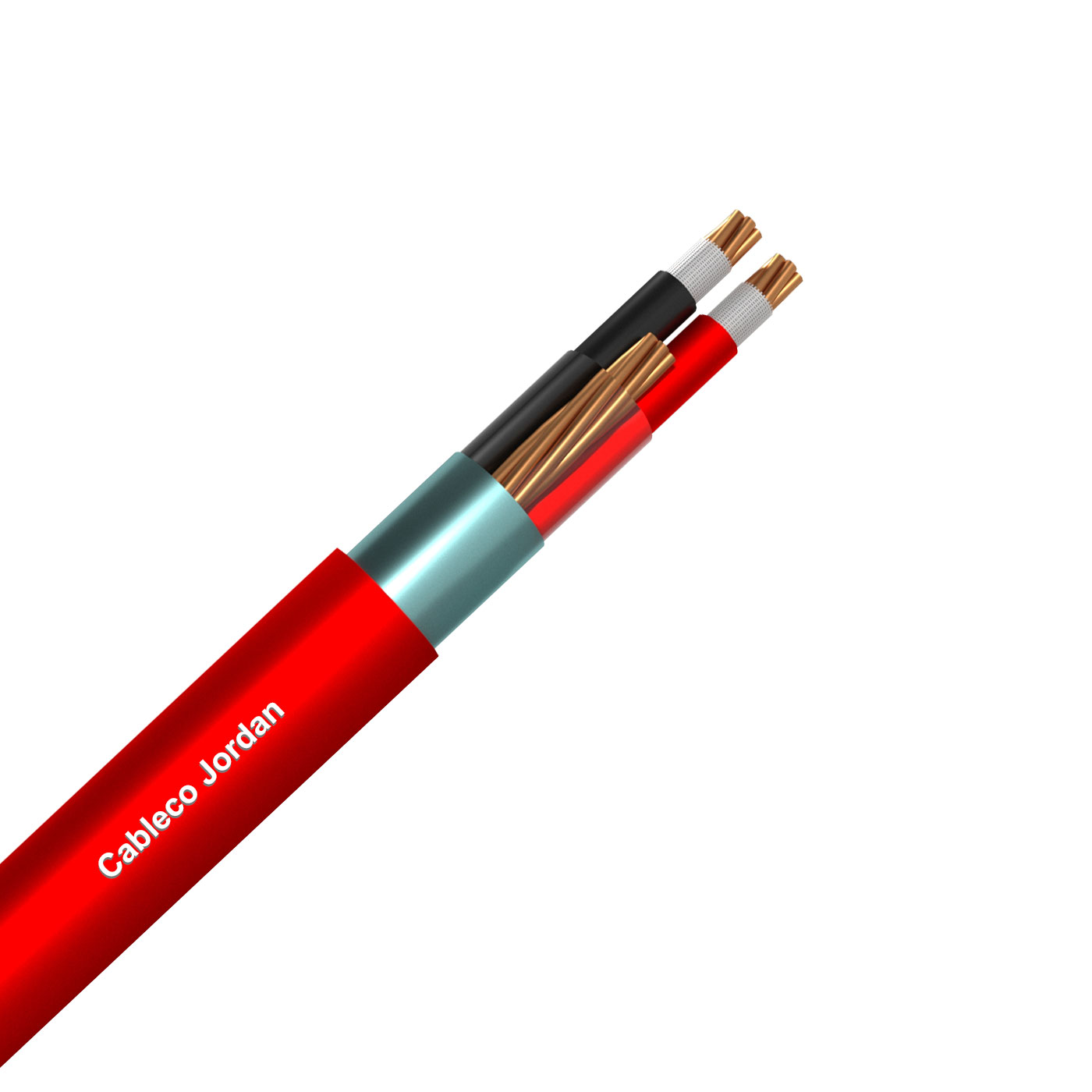

CU/Mica Tape/XLLSHF/Screening/LSZH Multi Cores
